Table of Contents Previous Section Next Section Introduction

This session explains how to execute a data file compare program. The COBOL source code for the compare program was generated with SimoTime technologies and compiled with Micro Focus Net Express.

1. Create or use a command line script to execute a data file compare program.
2. Map the physical file names used by Windows to the externally defined file names used by the data file compare program.
3. Write execution information to a log file.

Note: This module is part of The SimoPATH Series of training and reference materials. For more information refer to The Internet Home Page for The SimoPATH Series.


We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Execute the File Compare Process

This section describes how to use a previously created script to set up the environment and execute the data file compare program. When a difference occurs the information will be written to a log file.

Table of Contents Previous Section Next Section View and Understand the Script File

The script file (ITUTL3E1.cmd) used in this session is a Microsoft Windows Command File. This command file is located in the "c:\DataMig1\CMDS" directory and may be viewed or edited using Notepad.

@echo OFF
rem  * *******************************************************************
rem  *               ITUTL3E1.cmd - a Windows Command File               *
rem  *         This program is provided by SimoTime Technologies         *
rem  *           (C) Copyright 1987-2019 All Rights Reserved             *
rem  *             Web Site URL:   http://www.simotime.com               *
rem  *                   e-mail:   helpdesk@simotime.com                 *
rem  * *******************************************************************
rem  *
rem  * Text   - Compare the item files using position specification at
rem  *          execution time.
rem  * Author - SimoTime Technologies
rem  * Date   - July 24, 2005
rem  *
rem  * This set of programs will run on a mainframe under MVS or on a
rem  * Personal Computer with Windows and Micro Focus Net Express.
rem  *
rem  *
rem  * *******************************************************************
rem  * Step   1   Delete any previously created file...
rem  *
     set CmdName=ITUTL3E1
     call ..\Env1BASE %CmdName%
     set SYSLOG=%BASESYS%\LOGS\SYSLOG.VREC.%CmdName%.dat
     if exist %SYSLOG% erase %SYSLOG%
rem  *
     call SimoNOTE "*******************************************************%CmdName%"
     call SimoNOTE "Starting JobName %CmdName% "
:SetEnvironment
     call SimoNOTE "Identify JobStep SetEnvironment"
     set SYSUT1=%BASECAT%\APPL\SIMOTIME.DATALIVE.ITEMWORK.DAT
     set SYSUT2=%BASECAT%\APPL\SIMOTIME.DATAPAST.ITEMWORK.DAT
     set SYSUT3=%BASELIB1%\PARMLIB2\ITSYSUT3.dat
     call SimoNOTE "SYSUT1 is %SYSUT1% "
     call SimoNOTE "SYSUT2 is %SYSUT2% "
     call SimoNOTE "SYSUT3 is %SYSUT3% "
rem  *
rem  * *******************************************************************
rem  * Step   2   Edit input, create a new output file...
rem  *
:ExecuteItemFileCompare
     call SimoNOTE "Identify JobStep ExecuteItemFileCompare"
     run ITUTL3C1
     if exist %SYSLOG% call SYSLOGW1
     call SimoNOTE "Finished JobName %CmdName%"
:End
     call SimoNOTE "Conclude SysLog is %SYSLOGLS% "
     if not "%1" == "nopause" pause

Table of Contents Previous Section Next Section Execute the File Compare

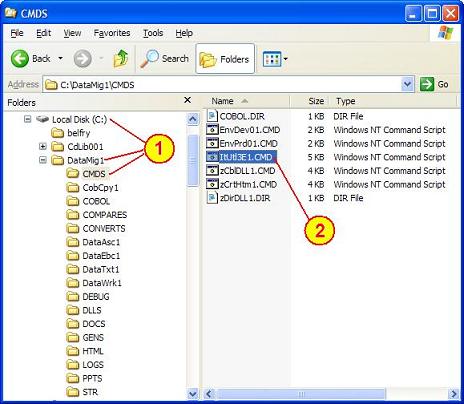

From Windows Explorer execute the command file as follows.

1. Select the "c:\DataMig1\CMDS" directory.
2. Double click on the "ItUtl3E1.CMD" item.

Table of Contents Previous Section Next Section Review the Differences

When a difference in the files occurs the information is written to the log (SYSLOG) file. Windows Explorer may be used to view the SYSLOG file and examine the detailed information about the differences. From the left window pane navigate to the "LOGS" folder.

Local Disk (C:)
 DATAMIG1
 DEVL
 LOGS

From the right window pane select the "SYSLOG.LSEQ.ITUTL3E1.txt" file to open with NotePAD.

Notepad should display the following information (scroll to the end of the file to view the latest entries).

When a not equal condition is encountered the following is displayed to the screen and written to a logging file. The RED shows the possible ASCII translation. The BLUE shows the possible EBCDIC translation. The BLACK shows the hexadecimal dump information on two lines (high nibble on line 1, low nibble on line 2). The YELLOW high-lighting shows reference information about each file. For example, the relative record number is displayed along with the position and length of the text string within the record that was compared. The GREEN row shows the positions that are equal (=) or not equal (#). The vertical PINK high-lighting emphasizes the positions or columns that is not equal. In this example the positions are 93-94.

*** 2014/05/02 00:13:51:94 ********************************************************************************
*** 2014/05/02 00:13:51:94 Starting  - Compare ITEM File/512 with SYSUT3           http://www.SimoTime.com
*** 2014/05/02 00:13:51:94 ********************************************************************************
*** 2014/05/02 00:13:51:94 * ITUTL3C1 Compare ITEM File/512 with SYSUT3  v13.05.16   helpdesk@simotime.com
*** 2014/05/02 00:13:51:94 * ITUTL3C1 This Data File Compare Member was generated by SimoTime Technologies
*** 2014/05/02 00:13:51:94 SYSUT1....000000005(00001:00094)
*** 2014/05/02 00:13:51:94 ....:...10....:...20....:...30....:...40....:...50....:...60....:...70....:...80....:...90....
*** 2014/05/02 00:13:51:94 000000000093Dome Light                                      ...$....Each            ..........
*** 2014/05/02 00:13:51:94 3333333333334666246667222222222222222222222222222222222222220002000046662222222222220000900019
*** 2014/05/02 00:13:51:94 0000000000934FD50C9784000000000000000000000000000000000000000004000051380000000000000004C0002C
*** 2014/05/02 00:13:51:94 .............?_..<.................................................../........................
*** 2014/05/02 00:13:51:94 SYSUT2....000000005(00001:00094)
*** 2014/05/02 00:13:51:94 ....:...10....:...20....:...30....:...40....:...50....:...60....:...70....:...80....:...90....
*** 2014/05/02 00:13:51:94 000000000093Dome Light                                      ...$....Each            ..........
*** 2014/05/02 00:13:51:94 3333333333334666246667222222222222222222222222222222222222220002000046662222222222220000900008
*** 2014/05/02 00:13:51:94 0000000000934FD50C9784000000000000000000000000000000000000000004000051380000000000000004C0009C
*** 2014/05/02 00:13:51:94 .............?_..<.................................................../........................
*** 2014/05/02 00:13:51:94 ============================================================================================##
*** 2014/05/02 00:13:51:94 *
*** 2014/05/02 00:13:51:94 Conclude  - Compare ITEM File/512 with SYSUT3
*** 2014/05/02 00:13:51:94 000000007 - Record count for SYSUT1
*** 2014/05/02 00:13:51:94 000000007 - Record count for SYSUT2
*** 2014/05/02 00:13:51:94 000000001 - NOT Equal count for compare of existing records
*** 2014/05/02 00:13:51:94 000000006 - Number of matching record pairs for Compare Task
*** 2014/05/02 00:13:51:94 000000000 - NOT Equal count for compact is ZERO
*** 2014/05/02 00:13:51:94 ABENDING  - Compare ITEM File/512 with SYSUT3           http://www.SimoTime.com

The summary information shows the record counts and the number of unequal compares by record count.

Table of Contents Previous Section Next Section Summary

The purpose of this document is to show how to execute (or run) a program that compares two data files. This document may be used as a tutorial for new programmers or as a quick reference for experienced programmers.

In the world of programming there are many ways to solve a problem. This document and the links to other documents are intended to provide a greater awareness of the Data Management and Application Processing alternatives.

The documentation and software were developed and tested on systems that are configured for a SIMOTIME environment based on the hardware, operating systems, user requirements and security requirements. Therefore, adjustments may be needed to execute the jobs and programs when transferred to a system of a different architecture or configuration.

SIMOTIME Services has experience in moving or sharing data or application processing across a variety of systems. For additional information about SIMOTIME Services or Technologies please contact us using the information in the  Comments or Feedback  section of this document.
