Create a Project
Using Net Express
  Table of Contents  v-14.09.08 - nxstrt01.htm
  Introduction
  Create a New Net Express Project
  Step 1, Start Net Express
  Step 2, Create a New Project
  Step 3, Define Project Name & Location
  Step 4, Display New Project Window
  Summary
  Software Agreement and Disclaimer
  Downloads and Links
  Current Server or Internet Access
  Internet Access Required
  Glossary of Terms
  Comments or Feedback
  Company Overview

Table of Contents Previous Section Next Section Introduction

This document describes how to create a new Net Express project. This is a four step process.

1. Start Net Express.
2. Choose the options to create a new project.
3. Define project name and location.
4. Display the New, Empty Project Window

Note: This module is part of The SIMOPATH Series of training and reference materials. For more information refer to The Home Page for The SIMOPATH Series.

We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Create a New Net Express Project

To create a Net Express Project we must first start Net Express.

Table of Contents Previous Section Next Section Step 1, Start Net Express

Do the following tasks to start Net Express.

1. Click on the START button.
2. Select "All Programs".
3. Select "Micro Focus Net Express 4.0".
4. Select "Net Express".

A Net Express window should be displayed.

Table of Contents Previous Section Next Section Step 2, Create a New Project

Do the following tasks to create a new project.

1. Select the "File" item of the Net Express Tool Bar.
2. Select the "New" item of the drop-down list.
3. Select the "Project" item.
4. Click on the "OK" button.

The following screen should be displayed.

Table of Contents Previous Section Next Section Step 3, Define Project Name & Location

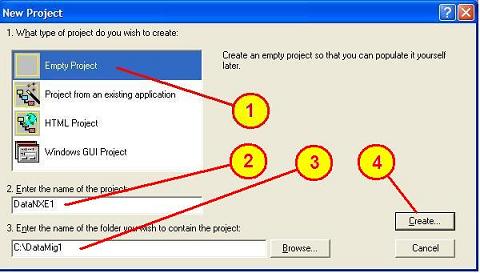

The following screen is used to define the Net Express project name and location.

1. Select "Empty Project".
2. Type the project name "DataNXE1" or you may use a project name of your choice.
3. Type the directory name or use the Browse button to locate the directory where the project file will be located. Net Express will create a DataNXE1.APP project file in the c:\DataMig1 directory. The DataNXE1.APP file will contain the information about the project.
4. Click on the "Create" button.

The following screen should be displayed.

Table of Contents Previous Section Next Section Step 4, Display New Project Window

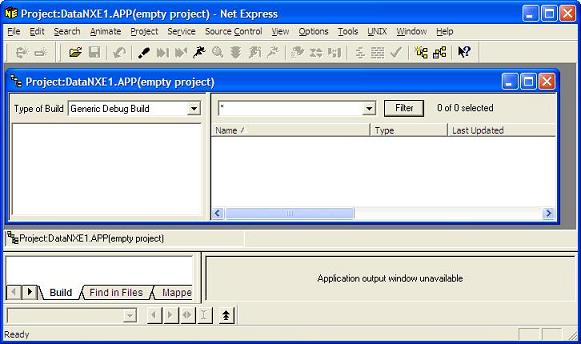

The following window shows the new, empty Net Express project that has been created.

This will be used as the starting point for adding additional source members and data files. The new project has been created.

Table of Contents Previous Section Next Section Summary

The purpose of this document is to show how to start Net Express and create a new project. Also, this document may be used to assist as a tutorial for new programmers or as a quick reference for experienced programmers. In the world of programming there are many ways to solve a problem. This is an example of how a COBOL program can access (i.e. Get or Set) environment variables using Micro Focus Net Express.
