This document describes how to use the basic functions of the Micro Focus Data File Editor to view records in a data file.

Note: This module is part of The SIMOPATH Series of training and reference materials. For more information refer to The Home Page for The SIMOPATH Series.

We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Add a Data File to a Project

The following describes the steps to add a data file to a Net Express project and then view the file using the Micro Focus Data File Editor.

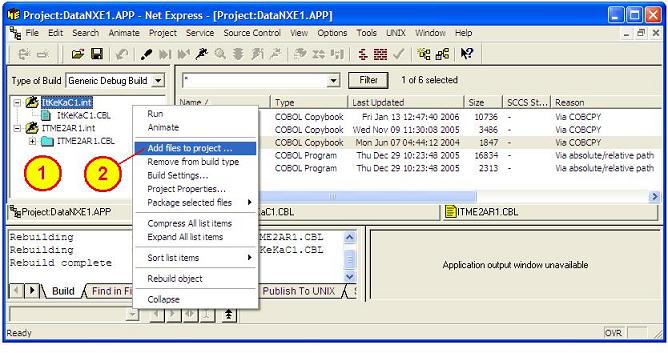

From the Net Express desktop (IDE) do the following.

1. From the left window pane do a right-click on the mouse button (position the mouse-pointer to any white area in the left pane).
2. From the drop-down list select "Add files to project...".

Table of Contents Previous Section Next Section Step 1, Specify the Data File Directory

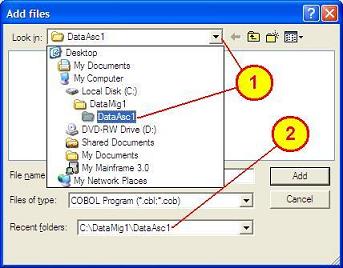

The following window should be displayed.

1. From the "Look in:" box use the down-arrow to select the "C:\DataMig1\DataAsc1" directory. Notice the "Recent folders:" box is refreshed as you select the drive and directories from the "Look in:" box.
2. Notice the Directory now appears in the "Recent folders:" box.

Table of Contents Previous Section Next Section Step 2, Specify the Data File Type

After selecting the directory where the file resides it will be necessary to select the proper file from the directory. Since the data files have an extension of ".DAT" perform the following from the same screen.

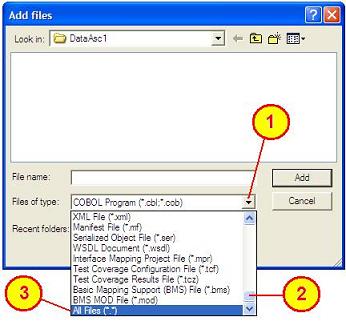

The following window should be displayed.

1. Select the "Files of type:" box and use the down-arrow to display a drop-down list.
2. Scroll to the bottom of the drop-down list using the vertical scroll bar.
3. Select the "All Files (*.*)" option.

Table of Contents Previous Section Next Section Step 3, Specify the Data File Name

After selecting all file types it will be necessary to select the specific file.

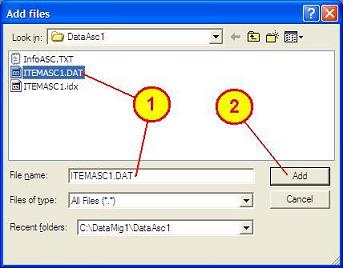

The following window should be displayed.

1. Click on the "ITEMASC1.DAT" to select the Item Master File. After the file is selected the file name should appear in the "File name:" box.
Note: For Indexed Files make sure to select the ".DAT" and not the ".IDX" file.
2. Click on the "Add" button.

Table of Contents Previous Section Next Section Step 4, Add the File to the Project

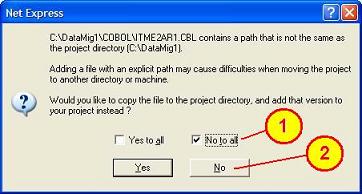

The following screen should be displayed.

1. Check the "No to all" box.
2. Click on the "No" button.

Table of Contents Previous Section Next Section Using the Data File Editor

After the preceding step is complete the Net Express Desktop (IDE) Window should be refreshed.

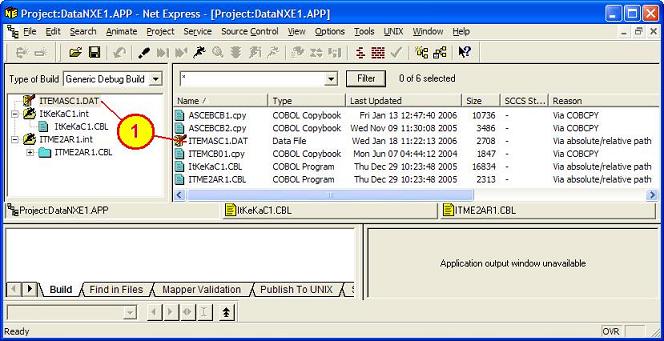

The Net Express Desktop (IDE) Window should be displayed.

1. The ITEMASC1.DAT should be shown in both the left and right window panes. Double-click on either ITEMASC1.DAT and the Micro Focus Data File Editor should display a list of the first few records in the file.

Table of Contents Previous Section Next Section Step 1, View a List of Records

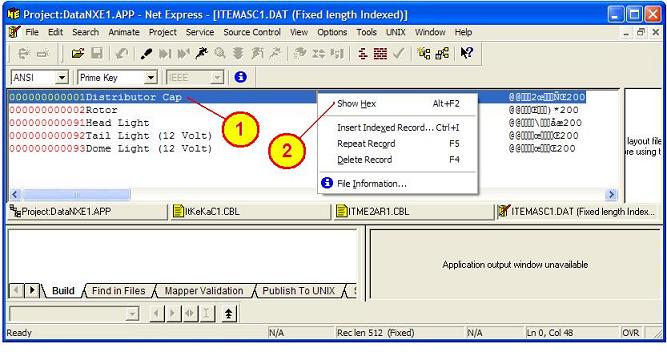

The following screen should be displayed.

1. Use the mouse to select the first record and click on the right mouse button to show the preceding drop down list.
2. Select the "Show Hex" option.

Table of Contents Previous Section Next Section Step 2, View Hexadecimal

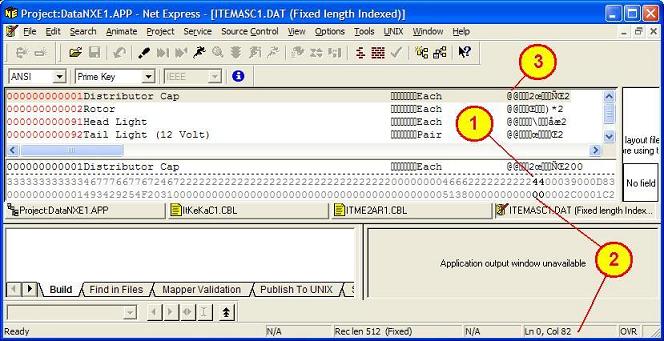

The following screen with hexadecimal dump information should be displayed.

1. Use the mouse to position the cursor to the left of the first hex 40 value as shown in the preceding window.
2. Notice the col (column) value shows 82. The characters at position 82 and 83 are EBCDIC spaces in an ASCII-encoded file.
3. Another indication is the display of the "@" character in the translated display in the larger window pane showing the first few records in the file.

Table of Contents Previous Section Next Section Summary

The purpose of this document is to show how to add a data file to a Net Express project and then view the file using the Micro Focus Data File Editor. Also, this document may be used to assist as a tutorial for new programmers or as a quick reference for experienced programmers. In the world of programming there are many ways to solve a problem. This is an example of how a COBOL program can access (i.e. Get or Set) environment variables using Micro Focus Net Express.
