This document describes how to add (or identify) source members to an existing Net Express project. This set of programs will be used to compare data files. This is a four step process.

1. Start Net Express and select Function to Add Source Members.
2. Select Specific Source Members to be added to the project
3. Add the Source Members to the Project.
4. View List of Source Members within a Project.

Note: This module is part of The SIMOPATH Series of training and reference materials. For more information refer to The Home Page for The SIMOPATH Series.


We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Add Source Members to Project

The following describes the steps to add a source member to an existing Net Express project.

Table of Contents Previous Section Next Section Step 1, Function to Add Source Members

Select the Net Express function that will be used to add files (or source members) to the project.

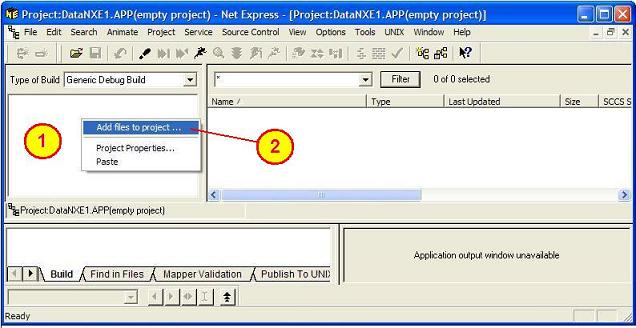

1. Select the Function to Add Source Members to the project.
1.1. From the left window pane do a right-click on the mouse button (position the mouse-pointer to any white area in the left pane).
1.2. A small window should be displayed. Select "Add files to project...".

Table of Contents Previous Section Next Section Step 2, Select Specific Source Members

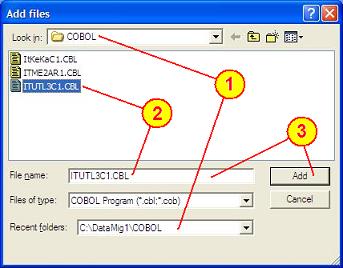

The following window should be displayed.

2. Select Specific Source Members
2.1. From the "Look in:" box use the down-arrow to select the "C:\DataMig1\COBOL" directory. Notice the "Recent folders:" box is refreshed as you select the drive and directories from the "Look in:" box. Once the "C:\DataMig1\COBOL" directory is selected the list of source members should be displayed.
2.2. With the list of COBOL source members displayed press the mouse button to select the "ITUTL3C1.CBL" source member.
2.3. When the source member names are displayed in the "File Name:" box press the "Add" button.

Table of Contents Previous Section Next Section Step 3, Add Source Members to Project

The following window should be displayed.

3. Add Source Members to Project
3.1. Check the "No to all" box
3.2. Click on the "No" button.

The following information should be displayed in the Net Express desktop.

Table of Contents Previous Section Next Section Step 4, View List of Source Members

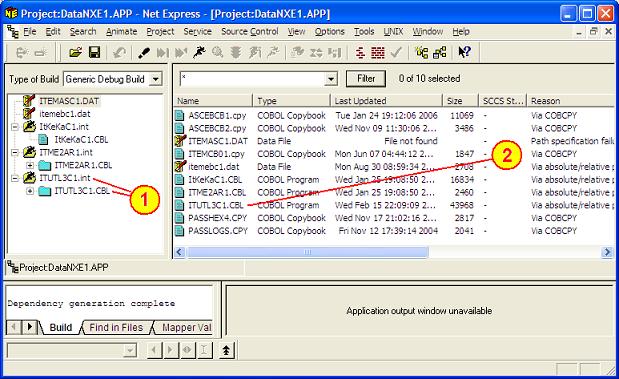

The following window should be displayed.

4. View List of Source Members
4.1. The left-pane contains the structure and list of executable members.
4.2. The right-pane contains a list of the source members. Notice the "ITUTL3C1.CBL" has been added to the project

Note:  If a "File not found" message is shown for the copy files the programs will not compile successfully. To include the copy files refer to the SimoPATH Task Document for Pointing to a Copy File Directory.

Table of Contents Previous Section Next Section Summary

The purpose of this document is to define the location of the COBOL source code for a Net Express project. This document may be used to assist as a tutorial for new programmers or as a quick reference for experienced programmers.

In the world of programming there are many ways to solve a problem. This document and the links to other documents are intended to provide a greater awareness of the Data Management and Application Processing alternatives.

The documentation and software were developed and tested on systems that are configured for a SIMOTIME environment based on the hardware, operating systems, user requirements and security requirements. Therefore, adjustments may be needed to execute the jobs and programs when transferred to a system of a different architecture or configuration.

SIMOTIME Services has experience in moving or sharing data or application processing across a variety of systems. For additional information about SIMOTIME Services or Technologies please contact us using the information in the  Comments or Feedback  section of this document.
