Table of Contents Previous Section Next Section Introduction

This document describes how to view and validate the generation of the COBOL source code for two programs. The first program will read an EBCDIC encoded file and write an ASCII encoded file. The data conversion will be performed by a second COBOL program that is called by the first COBOL program. Since the COBOL source code is COBOL/2 compliant it may be compiled and executed on an IBM Mainframe (z/OS or VSE), a Wintel platform (Windows and Micro Focus) or a UNIX platform (with Micro Focus).

This example illustrates the following functions.

1. View the generated COBOL source code created by the Generation process.
2. View the HTML document created during the generation process.
3. Create the file of specifications to generate the I/O program.
4. Create and execute a command file to automate and document the process.

Note: This module is part of The SimoPATH Series of training and reference materials. For more information refer to The Internet Home Page for The SimoPATH Series.


We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section View the Generated Source Code

Generating the COBOL source code to do the data file conversion is a two step process. The first step is to create the callable conversion program using the copy file as input. The second step is to create the I/O program using the specifications file as input.

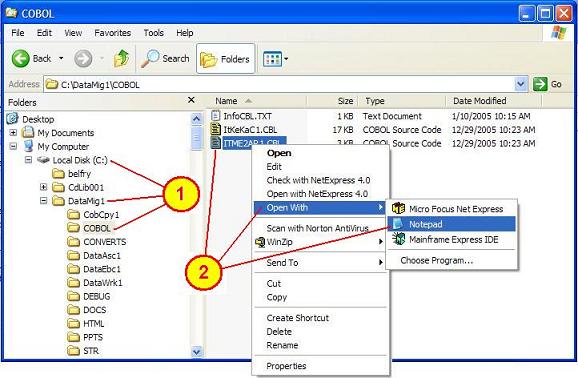

The following source member (ITME2AR1.cpy) should be displayed using Notepad.

       IDENTIFICATION DIVISION.
       PROGRAM-ID.    ITME2AR1.
       AUTHOR.        SIMOTIME TECHNOLOGIES.
      *****************************************************************
      *           This routine was generated by SimoREC1              *
      *             A product of SimoTime Technologies                *
      *        Our e-mail address is: helpdesk@simotime.com           *
      *     Also, visit our Web Site at http://www.simotime.com       *
      *  Generation Date: 2007/07/27  Generation Time: 09:41:28:37    *
      *****************************************************************
       DATA DIVISION.
       WORKING-STORAGE SECTION.
       01  IX-1  PIC 9(5) VALUE 0.
       01  RM-1  PIC 9(5) VALUE 0.
       01  RO-1  PIC 9(5) VALUE 0.
       01  IX-2  PIC 9(5) VALUE 0.
       01  RM-2  PIC 9(5) VALUE 0.
       01  RO-2  PIC 9(5) VALUE 0.

       COPY ASCEBCB1.
       COPY ASCEBCB2.

      *****************************************************************
       LINKAGE SECTION.
       COPY ITEMCB01.

      *****************************************************************
       PROCEDURE DIVISION using ITEM-RECORD.
           inspect ITEM-NUMBER              converting E-INFO to A-INFO
           inspect ITEM-DESCRIPTION         converting E-INFO to A-INFO
      *    Binary  ITEM-QTY-ONHAND
      *    Binary  ITEM-QTY-ALLOCATED
           inspect ITEM-UNIT-OF-MEASURE     converting E-INFO to A-INFO
      *    Packed  ITEM-COST
      *    Packed  ITEM-PRICE
           inspect ITEM-LADATE              converting E-INFO to A-INFO
           inspect ITEM-LATIME              converting E-INFO to A-INFO
           inspect ITEM-TOKEN               converting E-INFO to A-INFO
      *    Group10 ITEM-DISCOUNT                     occurs 00003 times
      *    Group  00008
      *    Table   ITEM-D-CODE
           perform varying IX-1 from 1 by 1 until IX-1 > 00003
             inspect ITEM-D-CODE(IX-1)      converting E-INFO to A-INFO
           end-perform
      *    Table   ITEM-D-PERCENT
           add 0000115 to ZERO giving RM-1
           add 0000008 to ZERO giving RO-1
           perform 00003 times
             inspect ITEM-RECORD(RM-1:00007)
                                            converting E-NUMB to A-NUMB
             add RO-1 to RM-1
           end-perform
      *    Group10                                          End-Group10
      *    Filler  A Non-Unique Reference to a Data Item
           inspect ITEM-RECORD(138:375)     converting E-INFO to A-INFO
           GOBACK.

Table of Contents Previous Section Next Section View the HTML Document

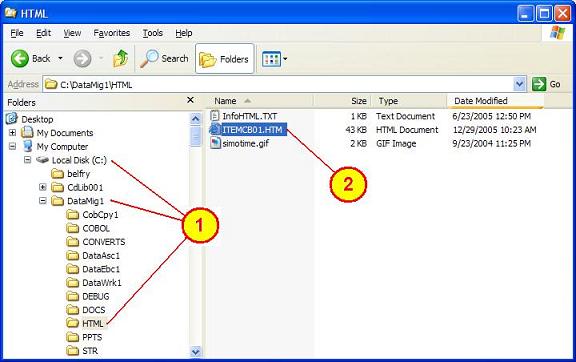

Start Windows explorer and perform the following steps.

From Windows Explorer perform the following steps.

1. From the left pane select the c:\DataMig1\HTML directory.
2. From the right pane double-click on ItemCB01.HTM.

Table of Contents Previous Section Next Section Summary

The purpose of this session is to describe how to generate the COBOL source code that will convert a data file from EBCDIC encoding to ASCII encoding.

This document may be used to assist as a tutorial for new programmers or as a quick reference for experienced programmers. In the world of programming there are many ways to solve a problem. This document and the links to other documents are intended to provide a choice of alternatives.
