Table of Contents Previous Section Next Section Introduction

This document describes how to generate the COBOL source code for two programs that will do a file format conversion (i.e. Record Sequential to Indexed) and a record content conversion (EBCDIC to ASCII). The first program will read an EBCDIC-encoded, Record Sequential file and write an ASCII -encoded Indexed file. The data conversion will be performed by a second COBOL program that is called by the first COBOL program. Since the COBOL source code is COBOL/2 compliant it may be compiled and executed on an IBM Mainframe (z/OS or VSE) or a Linux, UNIX or Windows System with Micro Focus Enterprise Developer.

The program generation is done on a Windows System and Micro Focus Enterprise Developer. However; the generated COBOL source code is COBOL/2 compliant. It may be compiled and executed on an IBM Mainframe System (z/OS or VSE) or a Linux, UNIX or Windows System with Micro Focus Enterprise Developer.

Performing this task will also generate an HTML document that describes the record layout based upon the copy file definition of the record structure. The HTML document will provide field position within the record and field lengths (both logical which is based on the PIC and physical which is based on the COMP or COMP-3).

This example illustrates the following functions.

Item Description
1 Generate the COBOL source code for a callable program that will convert a record (at the field level) from EBCDIC encoding to ASCII encoding.
2 Generate the COBOL source code for an I/O program that will read an EBCDIC encoded file, call a program to convert the record and write to the ASCII encoded file.
3 Create the file of specifications to generate the I/O program.
4 Create and execute a command file to automate and document the process.
  Functional Objectives of this Session

This module is part of The SimoPATH Series of training and reference materials. For more information refer to the following links.

Link to Internet   Link to Server   Explore The SIMOPATH Series starting at the home page to view information about training sessions and learning materials available from SimoTime Enterprises.

Note: The latest versions of the SimoTime Documents and Program Suites are available on the Internet and may be accessed using the Link to Internet icon. If a user has a SimoTime Enterprise License the Documents and Program Suites may be available on a local server and accessed using the Link to Server icon.


We have made a significant effort to ensure the documents and software technologies are correct and accurate. We reserve the right to make changes without notice at any time. The function delivered in this version is based upon the enhancement requests from a specific group of users. The intent is to provide changes as the need arises and in a timeframe that is dependent upon the availability of resources.

Copyright © 1987-2019
SimoTime Technologies and Services
All Rights Reserved

Table of Contents Previous Section Next Section Input to Generator Program

Generating the COBOL source code to do the data file conversion is a two step process. The first step is to create the callable conversion program using the copy file as input. The second step is to create the I/O program using the specifications file as input.

Table of Contents Previous Section Next Section The COBOL Copy File

The file conversion is accomplished by reading a record, converting the content of the record and writing a record to a new file. The record-level conversion is done at the field-level. The COBOL copy file that defines the structure of a record layout is used to generate the callable conversion program.

Table of Contents Previous Section Next Section Specifications for File Format & Record Content Conversion

The following is the specifications file used in this session as input to create the I/O program. The statements in this files will be used to generate the source code that will read the EBCDIC encoded file and write the ASCII encoded file.

The following (ITREKA01.pcf) is the Process Control File (PCF) that will be used to generate the file compare program.

***********************************************************************
*                ITREKA01.pcf - a Process Control File                *
*               SimoTime Program Generation Technologies              *
*             (C) Copyright 1987-2019 All Rights Reserved             *
*               Web Site URL:   http://www.simotime.com               *
*                     e-mail:   helpdesk@simotime.com                 *
***********************************************************************
* SYSUT1 is a Record Sequential,  512-byte, fixed, EBCDIC file for
*        the Item Master file. This file was downloaded from the
*        mainframe using BINARY mode.
* SYSUT2 is a KSDS, 512-byte, variable, ASCII file for the Item
*        Master file used in a non-mainframe environment.
*
* This procdedure will generate the IO Program, the callable convert
* routine and the HTML Documentation for the Item Master file.
* The primary purpose for this program is to do the initial load of
* the Item Master file. The records in the input file (SYSUT1)
* must be in ascending sequence by the field that is used as the key
* in the Item Master File.
***********************************************************************
*
&SIMOPREP  call ..\..\ENV1BASE
&USERPREP  call USERCONV
&CONFORM   IBM
&COPYFILE  ITEMCB01.cpy
&HTMLFILE  itemcb01.htm
&DIALECT   C2
&VSAMload  SEQUENTIAL
*HEAD34    ....:....1....:....2....:....3....
&HEAD34    Load ASCII/KSDS from EBCDIC/RSEQ
&IOMODNAME ITREKAC1
&SYSUT1    name=ITMRE512 org=Sequential recfm=FIXED    rlen=512
&SYSUT2    name=ITMKA512 org=Indexed    recfm=VARIABLE rmin=512 rmax=512 kpos=1 klen=12
&PACKEDFLD SPACECONVERT
&TransCALL ITREKAR1
&TransMODE E2A
*
&END

Link to Internet   Link to Server   Explore How to Generate a Data File Compare, Validate or Hex-Dump Program using simple specification statements in a Process Control File (PCF). This link to the User Guide includes the information necessary to create a Process Control File and generate the COBOL programs that will do a data file compare, accumulate summary totals with a record count or produce a Hex-Dump of records in a VSAM, KSDS based on a list of user-defined keys. The User Guide contains a list of the PCF statements that are used for the data file compare, validate or dump process.

Table of Contents Previous Section Next Section Generate the COBOL Source Code

Windows Explorer may be used to view the SYSLOG file and examine the detailed information about the differences. From the left window pane navigate to the "CONVERTS" folder.

My Computer
Local Disk (C:)
 DATAMIG1
 DEVL
 CONVERTS

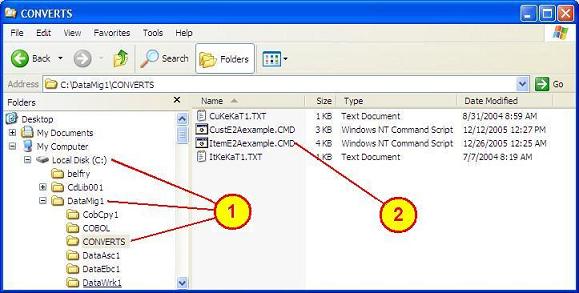

The following right-window-pane should be displayed. The "ItemE2Aexample.CMD" is the Windows command (.CMD) provided to run this job.

From Windows Explorer perform the following steps.

1. From the left pane select the c:\DataMig1\DEVL\CONVERTS directory.
2. From the right pane double-click on ItemE2Aexample.CMD to execute the process to generate the COBOL source code.

Executing the preceding should have generated the following three items.

1. A COBOL source member that performs the file I/O to read the EBCDIC-encoded file and write the ASCII-encoded file. This program contains a call to the second program that is generated to do the conversion of each record in the file.
2. A callable COBOL source member that performs the EBCDIC to ASCII conversion of a record at the field level.
3. An HTML member that documents the record layout based upon the COBOL copy file that defines the record structure.

The COBOL source members may now be compiled and executed as part of a Mainframe Express or Net Express project on a Windows platform. The Cobol source members may be transferred to a UNIX platform to be compiled and executed using Micro Focus COBOL. The source members may be transferred to a mainframe (z/OS or VSE) to be compiled and executed.
